Electrical Control Box

If you’re a factory operation manager, building engineering supervisor, or new energy project purchaser—have you often been troubled by these issues: sudden equipment failures are only detected after production halts, costing hours of productivity every month; remote site electrical boxes can’t be monitored in real time, forcing you to send engineers to the field; you want to reduce energy consumption, but can’t even figure out "which equipment uses the most power"? That’s where the IoT Control Box (Internet of Things Control Box) comes in—finally offering a solution to these "passive maintenance" pain points. Today, combining our IoT Control Box and insights from "product details + real-scenario testing," we’ll explain why it has become the "intelligent electrical core" for industries, buildings, and new energy sectors.   First, Let’s Look at the Actual Product: What "Black Tech" Hides in This IoT Control Box? Open our IoT Control Box (Figure 1), and you’ll notice its biggest difference from a traditional Electrical Control Box—it’s not just a simple "wiring + switch" setup, but an intelligent system that "can sense, transmit, and make decisions." Let’s break down the role of each key component: "Stable Heart": Mean Well WDR Series Switching Power SupplyUnlike ordinary power supplies, it provides stable output within a wide voltage range (110V-240V). Even during power grid fluctuations (e.g., peak electricity usage in industrial workshops), it ensures the control box’s internal modules don’t crash—this is the foundation for all subsequent intelligent functions. "Communication Brain": Siemens Communication ModuleSupporting Ethernet and 4G/5G dual modes, it can upload real-time data (voltage, current, temperature) from equipment to cloud platforms like Alibaba Cloud/AWS IoT (with latency ≤ 1 second) while receiving remote commands (e.g., remote start/stop of equipment), solving the pain point of "difficult remote monitoring." "Safety Barrier": Graded Circuit Breakers + IP65 Emergency Stop ButtonThe main circuit breaker (MCCB) protects the total power supply (e.g., 400A/3P for high-power scenarios), while branch MCBs prevent overload for individual devices. The emergency stop button cuts off all power within 3 seconds of being pressed, and its IP65-rated housing resists workshop dust and rain—boosting safety levels by 3x compared to traditional Control Panel Boxes. "Interactive Interface": 4.3-Inch TouchscreenNo need to connect to a computer—you can directly view real-time data and set early warning thresholds (e.g., alarm when temperature exceeds 60℃) on the screen, increasing on-site debugging efficiency for maintenance engineers by 50%. 3 Real-Scenario Tests: From "Firefighting Maintenance" to "Predictive Management" Talking about components isn’t enough—let’s use real data from 3 scenarios to show how the IoT Control Box solves practical problems: Scenario 1: Industry 4.0 Factory (Case Study: StarTech Electronics Factory, Philippines) Pain Points:300 SMT machines and welding robots required 2 hours of manual inspections daily; fault response took 4-6 hours; monthly downtime exceeded 15 hours; electricity bills remained persistently high. IoT Control Box Solution: Collect real-time current and temperature data from each device, and push alerts to mobile phones immediately when thresholds are exceeded (e.g., 15% abnormal current surge). Dynamic power distribution: Automatically reduce power for lighting and auxiliary fans during night shifts (low equipment load), and prioritize power supply for core equipment during daytime peaks. Measured Results:Fault response time reduced from "hours" to "5 minutes"; monthly downtime cut by 12 hours; electricity bills dropped by 12% directly; production capacity increased by 8% (Source: StarTech Factory March 2024 Report). Scenario 2: Smart Building (A Commercial Complex in Shanghai) Pain Points:HVAC, lighting, and elevators across 12 floors were managed by separate Electrical Panel Boxes, making unified monitoring impossible; HVAC energy consumption accounted for 60% of total electricity bills in summer, with no clear way to optimize. IoT Control Box Solution: Connect to the building’s BA (Building Automation) system to monitor real-time HVAC operating power and lighting status on each floor. Automatically lower HVAC temperatures in non-core areas (from 24℃ to 26℃) based on pedestrian flow data (e.g., low foot traffic on weekends). Measured Results:HVAC energy consumption reduced by 18% in summer; maintenance staff no longer need to check every floor—they can diagnose faults remotely (e.g., abnormal elevator power voltage on a specific floor). Scenario 3: Renewable Energy (A Photovoltaic (PV) Power Station in Shandong) Pain Points:20 PV inverters were distributed in the field; traditional Control Boxes couldn’t remotely monitor power generation or grid voltage; personnel had to be sent to cut off power on-site during thunderstorms, posing high risks. IoT Control Box Solution: Upload real-time PV inverter power generation and grid voltage data; support remote switching between "grid-connected/off-grid" modes. Equipped with a surge protector (SPD) to automatically cut off circuits during lightning strikes, protecting the inverters. Measured Results:Operation and maintenance costs reduced by 40% (no more frequent on-site visits); equipment failure rate dropped from 5% to 1.2%. Buying an IoT Control Box: Avoid These 3 Pitfalls! Many customers focus only on price when buying an IoT Control Box for the first time, ignoring key details. Based on our experience from over 100 projects, here are 3 key purchasing tips: Check "Communication Compatibility"Not all IoT Control Boxes can connect to your system! For industrial scenarios, confirm support for MODBUS/MQTT protocols; for smart buildings, ensure compatibility with BACnet protocols—avoid buying a box that "can’t connect" after purchase. Focus on "Protection Level"Choose IP65 (dustproof and waterproof) for outdoor/workshop use; IP54 is sufficient for indoor dry environments. Don&

The smart core of Philippine garbage stations leads the new trend of environmental protection     This garbage rake control cabinet is a key hub in the garbage disposal system. It is responsible for accurately controlling the operation of the garbage rake, whether it is the automatic sorting, crushing, compression and incineration processes of garbage, they are all carried out in an orderly manner under its strict control. Through advanced automation technology, the efficiency and intelligence of the entire garbage disposal process have been achieved, greatly improving the processing capacity and efficiency of Philippine garbage stations.     Safety is always the primary consideration. Therefore, Guozhiyun has carefully integrated multiple security protection mechanisms into its design. According to the unique requirements of the garbage truck transportation process, an emergency stop button is equipped. In case of an unexpected situation, the operator only needs to lightly press it to immediately stop the equipment, effectively avoiding accidents. At the same time, the installed anti-collision sensors are like sharp antennae that can monitor the surrounding environment in real time. When an object approaches a dangerous distance, the system will quickly react and automatically pause the operation of the equipment, thus building a solid safety line for operators and surrounding equipment.   In terms of environmental protection and energy conservation, Guozhiyun also performs well. The internal use of low-power components and energy-saving control technology not only reduces the energy consumption of the equipment itself, but also meets the environmental protection policy requirements of the Philippine government, helping the local area achieve sustainable development goals. Moreover, the garbage rake control cabinet also has the potential to be combined with the garbage incineration power generation system, which means that while solving the problem of garbage disposal, it can also convert garbage into valuable energy, provide sustainable energy supply for the Philippines, turn waste into treasure, and achieve resource recycling.   Guozhiyun's garbage rake control cabinet box, with its excellent performance, safe and reliable design, and environmentally friendly and energy-saving features, has brought innovative solutions to the waste treatment industry in the Philippines and become an important force in promoting local environmental protection.       What is a control cabinet?   A control cabinet panel is an enclosure that houses electrical and electronic components used to control machinery or processes, typically in manufacturing, automation, and power distribution systems. It contains devices such as programmable logic controllers (PLCs), relays, circuit breakers, and operator interfaces, protected by a durable metal shell to ensure safety and reliability in industrial environments.   In which industries are control cabinets widely used?   Manufacturing industry: used for production line control systems, precise control of various machine tools, automation equipment, etc., to achieve efficient production of products; It can also be used in robot systems to control the actions and operational processes of robots.   Energy industry: In substations and power plants, control cabinets are used for power distribution and control to ensure the stable operation of the power system; It is also used for monitoring and managing new energy equipment such as wind power generation and solar power generation.   Chemical industry: precise control of chemical reaction processes, adjusting parameters such as temperature, pressure, and flow rate to ensure product quality and safety   Power system: used in dry-type distribution systems to control and protect electrical equipment inside buildings, prevent overload, short circuit and other faults, and ensure the stable operation of the power system; Simultaneously, it can achieve power grid operation scheduling and power load management.   Air conditioning system: controls and protects air conditioning equipment, automatically adjusts the operating status of the air conditioning based on factors such as indoor and outdoor temperature.   Rail transit: used in subway, light rail, railway and other systems to monitor and control rail transit equipment in real time, ensuring the safe, timely and economical operation of trains.   Wastewater treatment: Control the operation of wastewater treatment equipment, such as water pumps, valves, mixers, etc., to achieve automation and optimized control of the wastewater treatment process.

  1.Power distribution: The electrical box distributes power to different circuits and equipment through internal switching devices, ensuring that electricity can be reasonably transmitted to various places where it is needed. 2. Control function: Users can control the connection or disconnection of circuits through manual or automatic switches inside the electrical box, thereby controlling the operation status of various electrical equipment connected to the electrical box. 3. Protection function: The electrical box is equipped with protective appliances, such as circuit breakers, leakage protectors, etc., which can automatically cut off the power supply in case of overload, short circuit or leakage in the circuit, protecting the safety of the circuit and equipment. 4. Measurement function: The measuring instruments inside the electrical box can display parameters such as current and voltage, helping to monitor the working status of the circuit and the use of electrical energy. 5. Convenient management: All power related components are centrally installed in the electrical box for easy maintenance and management. 6.Safe isolation: Electrical boxes are usually designed with a certain level of protection to prevent direct contact with live parts and reduce the risk of electric shock. 7.Applicable occasions: Electrical boxes are widely used in various places such as homes, schools, hospitals, etc., while distribution cabinets are more commonly used in centralized power supply situations such as industrial electricity and building electricity. 8.Regulatory requirements: In some countries and regions, the use of electrical boxes is a mandatory measure for power distribution and control in accordance with electrical safety regulations. 9.Beautiful and tidy: The electrical box can hide wires and electrical equipment, making the installation environment more beautiful and tidy. 10.Space saving: The design of electrical boxes is usually compact, which can save installation space, especially in limited space home or office environments. 11.In summary, electrical boxes are an indispensable component of the power system. They not only provide the basic functions of power distribution, but also have multiple functions such as control, protection, measurement, and safety isolation. They are important equipment for power supply and management in modern buildings and facilities.

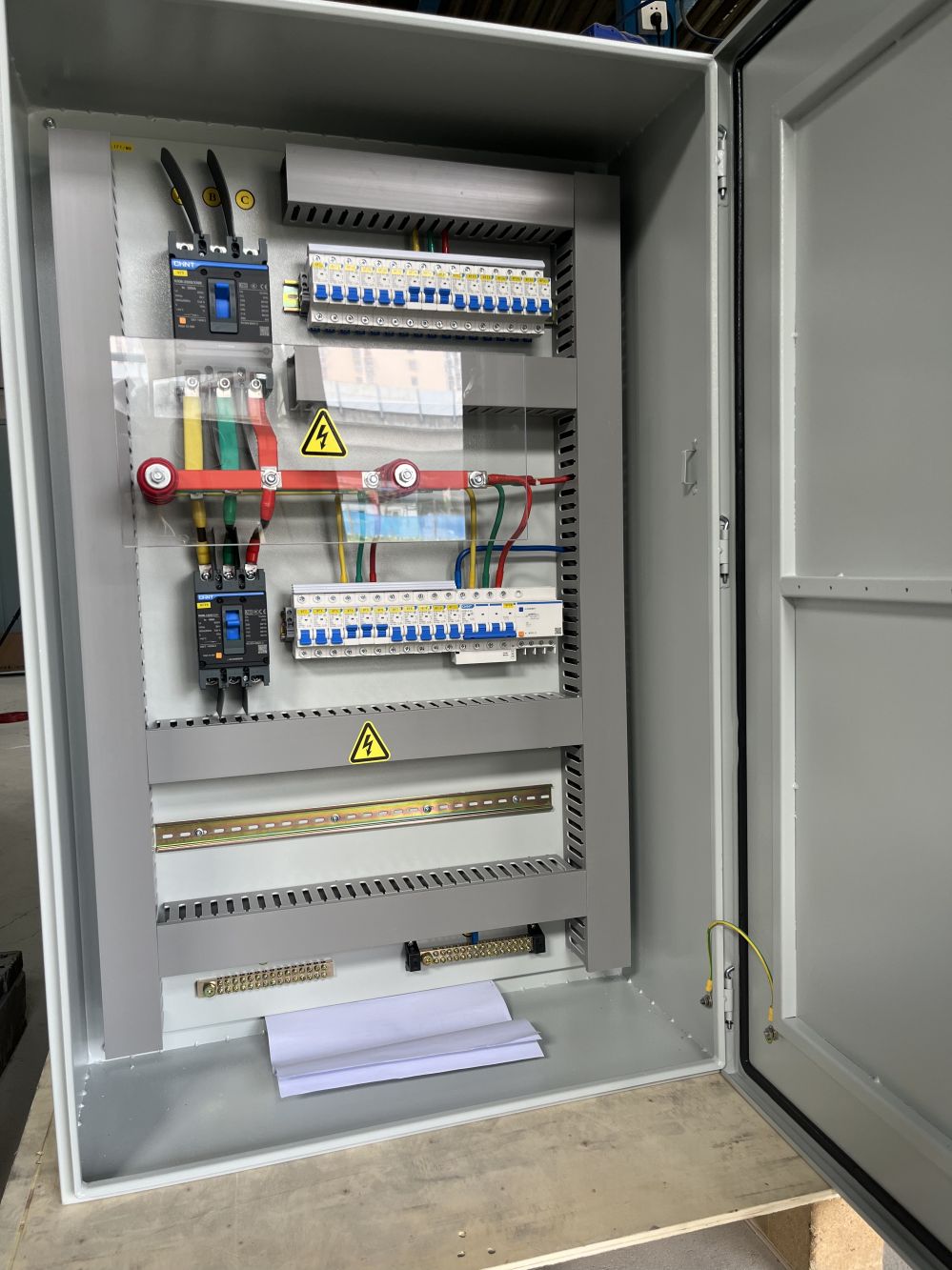

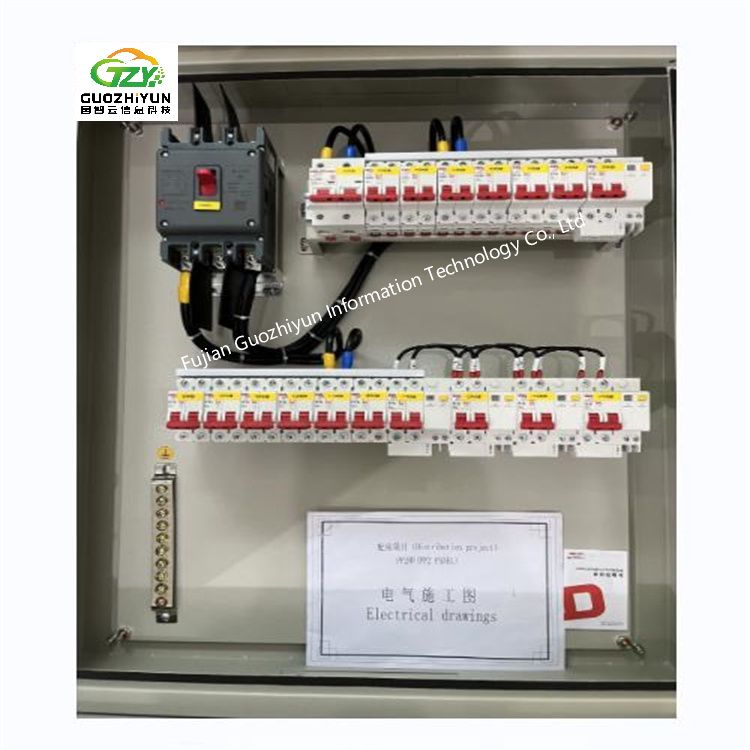

A distribution box is an electrical equipment used for distributing electrical energy, which has the functions of safety, convenience, and control of power supply.   Here are some detailed information about the distribution box:   1. Structural composition: The distribution box is usually composed of a metal cabinet, which is equipped with switch equipment, measuring instruments, protective appliances, and auxiliary equipment inside. These components are assembled in enclosed or semi enclosed spaces according to certain electrical wiring requirements. 2. Functional use: The main function of the distribution box is to connect, disconnect, and protect circuits. It can manually or automatically control circuit connections, and when the system malfunctions or operates abnormally, it can cut off the circuit or issue an alarm signal through protective appliances. At the same time, the measuring instruments inside the distribution box can display various parameters during operation and provide prompts or signals for deviations from normal working conditions. 3. Application scenario: Distribution boxes are widely used in various places such as homes, schools, hospitals, etc. It helps to manage and maintain the power system. Especially in the event of circuit failure, the distribution box is beneficial for quickly locating and repairing problems. 4. Classification method: According to different structures and purposes, distribution boxes can be divided into power distribution boxes, lighting distribution boxes, metering cabinets, etc. In addition, there are two forms: fixed type and drawer type. The former is commonly used in situations with dispersed loads and fewer circuits, while the latter is widely used due to its space saving, convenient maintenance, and multiple outgoing lines. Overall, the distribution box is a key equipment to ensure the normal operation and safety of the power system. It not only improves the convenience of electricity use, but also ensures electricity safety.
