800A Main Distribution Center and Sub-Distribution Units for Food Processing Plants

Tiered Power Distribution Network for Cold Storage and Bottling Facilities

High-Conductivity T2 Copper Busbar System for Industrial LV Switchgear

Genuine CHINT MCCB and Surge Protection Components for Electrical Safety

150A Sub-Main Distribution Board with Fault Isolation for Production Lines

IP35 Waterproof and Dustproof Electrical Panel for Food Grade Environments

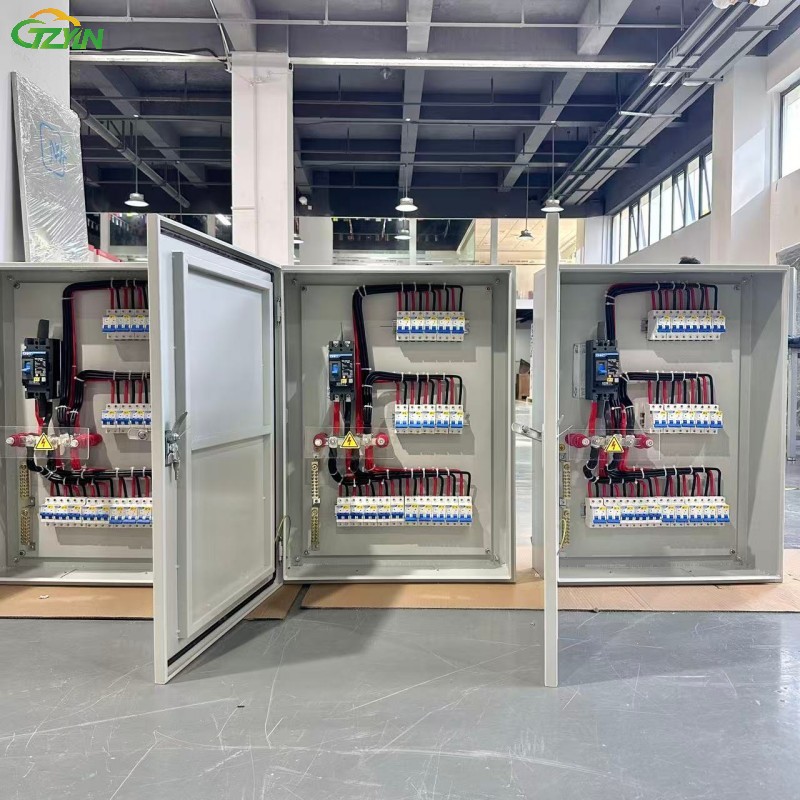

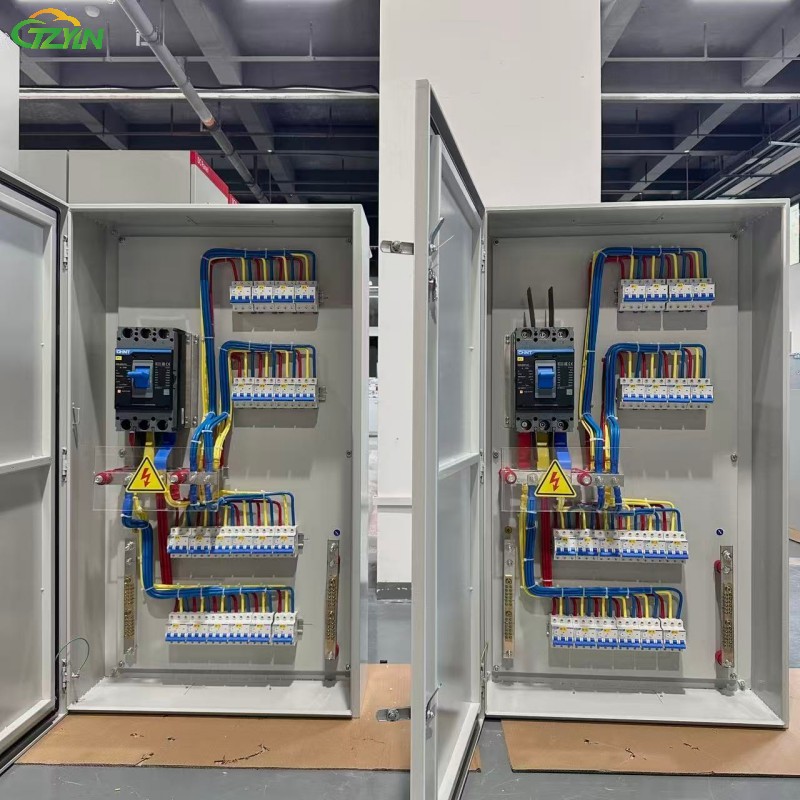

Power Distribution System (800A Main Panel & 150A Sub-Boxes)

To address the pain points of food processing plants—high power consumption of refrigeration units/sterilization equipment, multiple and dispersed production lines, and batch product spoilage caused by process interruptions—we build a power architecture combining centralized master control + decentralized power distribution. This enables global load management + regional fault isolation, ensuring continuity and safety throughout the food production process while complying with the hygiene and safety regulations of food processing workshops.

Item No :
GZY-FLB
Order(MOQ) :
3 units
Payment :
T/T、Paypal
Product Origin :
Fujian/Fuzhou
Color :
Carbon steel and stainless steel
Shipping Port :
Ningbo,Mawei,Shenzhen
Lead Time :
30 days
Weight :
customized

Inquiry now

product introduction

Hero Summary

Maximum Uptime for Your Production Line.

Our 2-tier power distribution solution is specifically engineered for the food and beverage industry. It combines an 800A Main Distribution Center (MDC) with multiple 150A Sub-Distribution Units (SDU) to ensure localized fault isolation, high-load stability, and compliance with strict hygienic standards.

Key Features & Benefits

⚡ Intelligent Fault Isolation
The "Main-to-Sub" architecture ensures that an electrical fault in one machine (e.g., a packaging unit) won't shut down the entire factory. Reduce batch spoilage by up to 80%.

🛡️ Industrial-Grade Protection

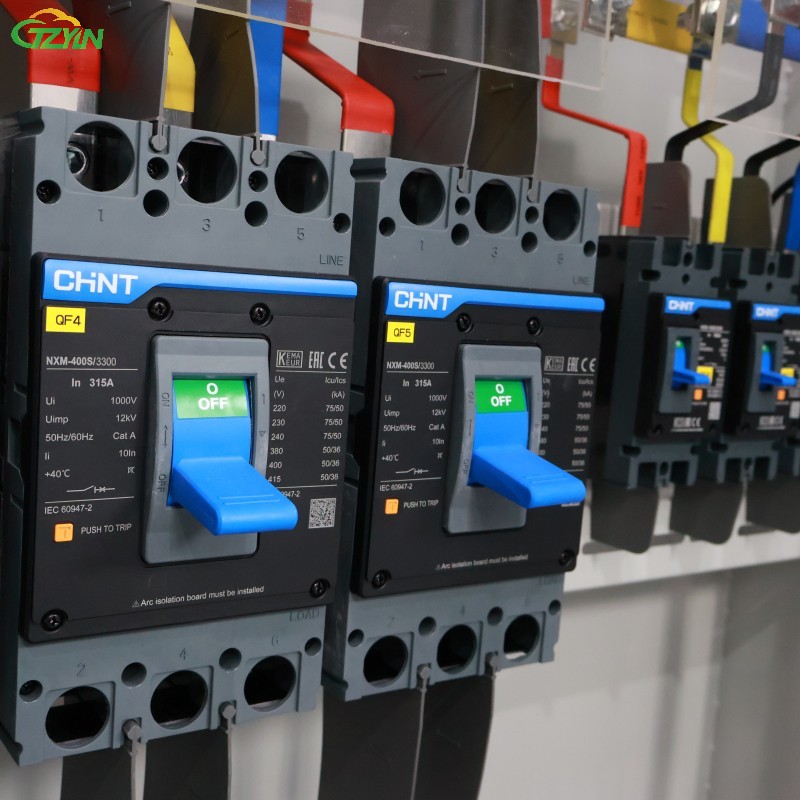

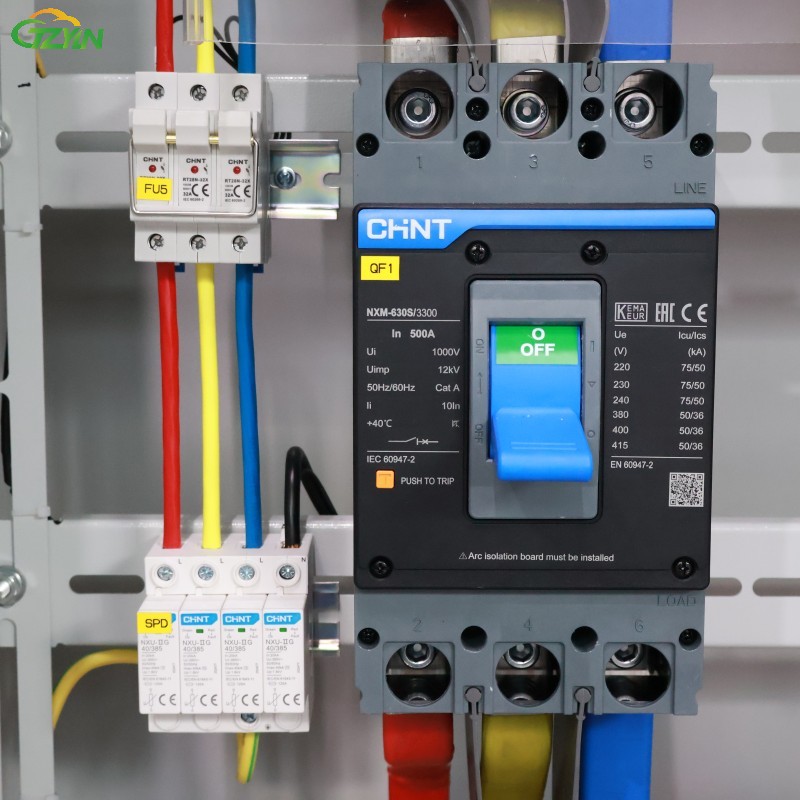

Features high-breaking capacity CHINT MCCBs (Molded Case Circuit Breakers) with advanced surge protection (SPD) to safeguard sensitive PLCs and digital sensors.

💧 Food-Safe & Hygienic DesignIP-rated enclosures with anti-corrosion coating. Designed to withstand high humidity and frequent cleaning cycles in food-grade environments.

🔌 Scalable & Future-Proof
Reserved expansion slots allow you to add new production lines or conveyors without upgrading the entire main panel.

📊 Real-Time Monitoring
Integrated high-precision meters for voltage and current tracking, helping you optimize energy costs and monitor equipment health.

Technical Specifications

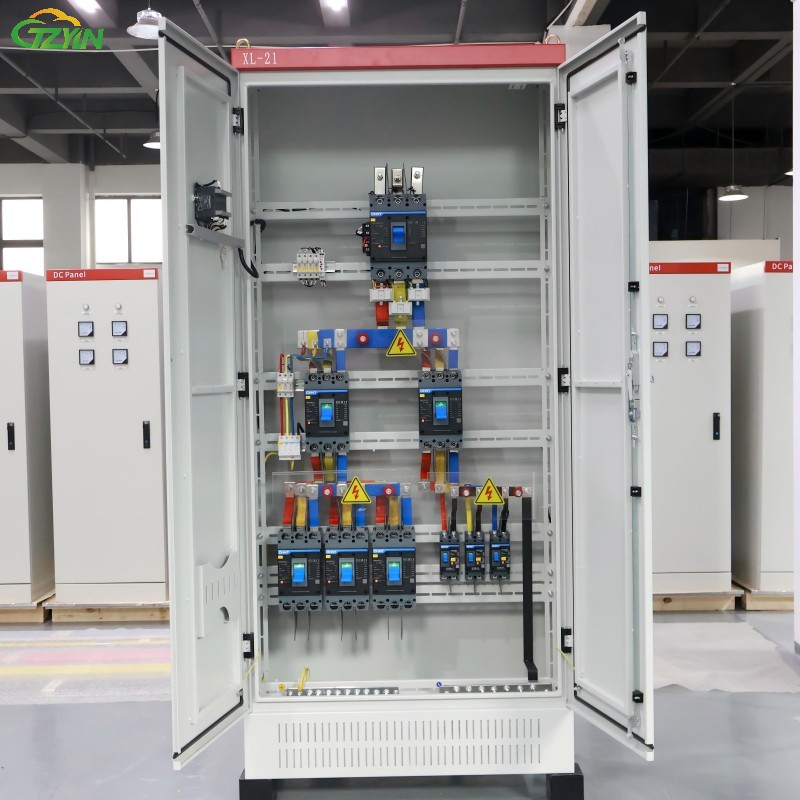

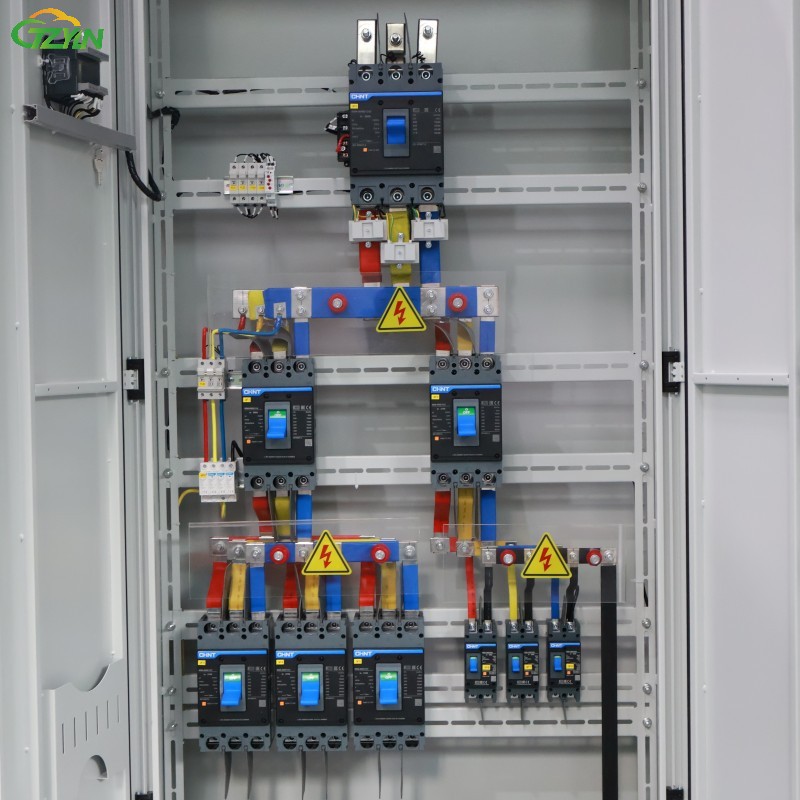

Feature	Main Distribution Panel (MDC)	Sub-Distribution Box (SDU)
Rated Current	800A	150A (Adjustable)
Main Breaker	800A MCCB / Air Circuit Breaker	150A/160A Molded Case Breaker
Protection Rating	IP35 (Dust-proof/Moisture-proof)	IP30 (Wall-mount design)
Components	CHINT NXM Series (IEC 60947-2)	CHINT NXB Series Mini Breakers
Input Voltage	380V - 415V AC (3-Phase)	380V / 220V AC
Enclosure	Floor-standing, Anti-corrosive Steel	Wall-mounted, Space-saving

Application Scenarios

Canning & Bottling: Handling high-power sterilization retorts and high-speed filling lines.
Cold Storage & Logistics: Managing large-scale compressors and climate control systems.
Industrial Bakeries: Powering heavy-duty mixers, ovens, and automated cooling towers.
Meat Processing: Safe operation in humid, temperature-controlled environments.

Why Choose Our Solution?

"Built for Continuity, Designed for Safety."

Global Standards: All internal components (CHINT) are CE and IEC certified, ensuring worldwide compatibility and easy local maintenance.
Professional Wiring: Clean, color-coded, and labeled internal busbars for rapid troubleshooting by any local electrician.
Customizable: We offer OEM/ODM services to modify breaker capacities or cabinet sizes based on your specific factory floor plan.
