turnkey industrial frequency conversion cabinet

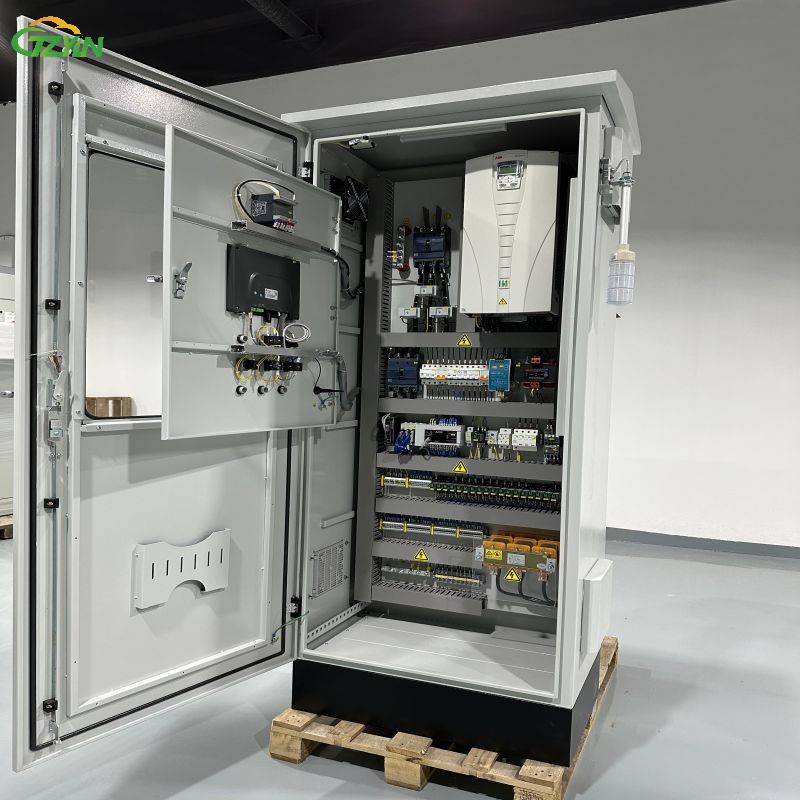

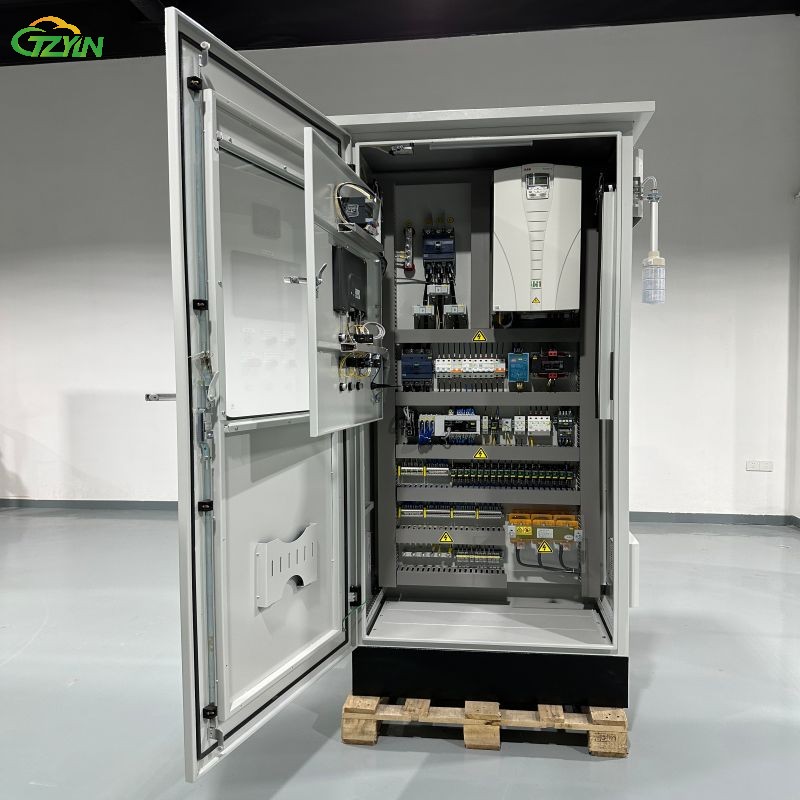

Internal components of vfd cabinet with ABB ACS510 frequency converter

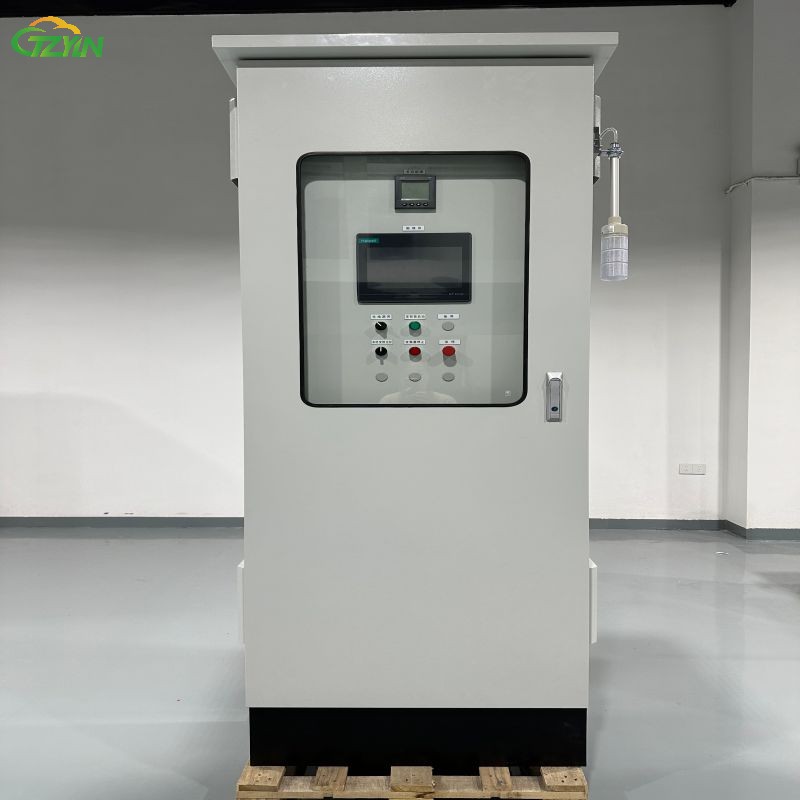

Water pump control cabinet for municipal water supply

vfd control cabinet precise speed regulation

Turnkey design assembled vfd cabinet with Mitsubishi PLC and protection system

ABB ACS510 VFD Control Panel | Water Pump Control Cabinet-Industrial control manufacturer

Our ABB ACS510-equipped VFD cabinet (vfd control panel) offers 30%+ energy saving & precise speed regulation for water pumps, fans and production lines; as a turnkey power distribution manufacturer, we provide customized water pump control cabinet & control panel box for industrial needs.

Item No :
GZY-GN3
Order(MOQ) :
3 units
Payment :
T/T、Paypal
Product Origin :
Fujian/Fuzhou
Color :
Carbon steel and stainless steel
Shipping Port :
Ningbo,Mawei,Shenzhen
Lead Time :
30 days
Weight :
customized

Inquiry now

product introduction

This is an industrial variable frequency control cabinet (vfd cabinet/vfd control panel) equipped with ABB ACS510 high-performance frequency converter, developed by a professional manufacturer of turnkey design and assembled power distribution equipment. It focuses on three core values: industrial energy efficiency, intelligent speed regulation, and reliable protection, and serves as a key piece of equipment for realizing equipment automation upgrades in manufacturing, water treatment, HVAC, and other fields. As an experienced turnkey design and assembled power distribution equipment manufacturer, we provide one-stop customization from component selection to cabinet integration, delivering industrial control solutions that combine performance and reliability.

I. Core Configuration (Industrial-Grade Brand Support, Turnkey Design & Assembly Ensure Quality)

Main Frequency Converter: ABB ACS510 Series (Core VFD Unit)As the core power component of the vfd control panel, it adopts the ACS510 series frequency converter from ABB, a world-renowned brand, with a speed regulation accuracy of ±0.5%. It is suitable for multiple load types such as fans, water pumps, conveyor belts, and machine tools, and supports energy-saving control, multi-speed adjustment, and PID closed-loop control. Our turnkey assembly process ensures seamless compatibility between the frequency converter and other electrical components, enabling it to handle complex working conditions with ease.
Control Unit: Mitsubishi PLC + High-Definition Touchscreen (Intelligent Control Hub)Equipped with Mitsubishi high-performance PLC as the logical control core of the vfd control panel, it can flexibly program automated processes (e.g., automatically adjusting motor speed based on pressure or flow sensor signals to achieve equipment linkage). Paired with a 7-inch high-definition touchscreen, it supports real-time parameter monitoring, visual fault alarming, and precise manual operation. As a turnkey design manufacturer, we deeply integrate the control unit with the frequency conversion system, significantly reducing manual debugging costs.
Electrical Protection System: Multiple Protections for Safety (Core Advantage of Turnkey Power Distribution)It integrates circuit breakers (for short-circuit/overload protection), relays (for signal switching), and surge protectors (for lightning/overvoltage protection), and also features over-temperature protection and phase-failure protection. As a turnkey power distribution equipment manufacturer, the vfd cabinet adheres strictly to industrial standards in electrical protection design, fully safeguarding circuits and equipment to avoid downtime losses caused by abnormal working conditions.

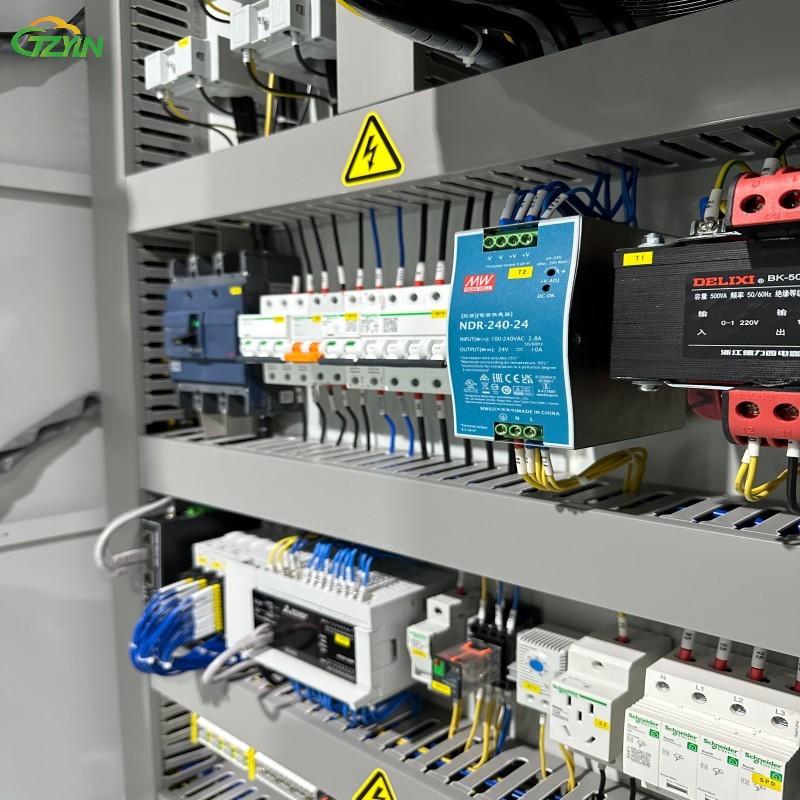

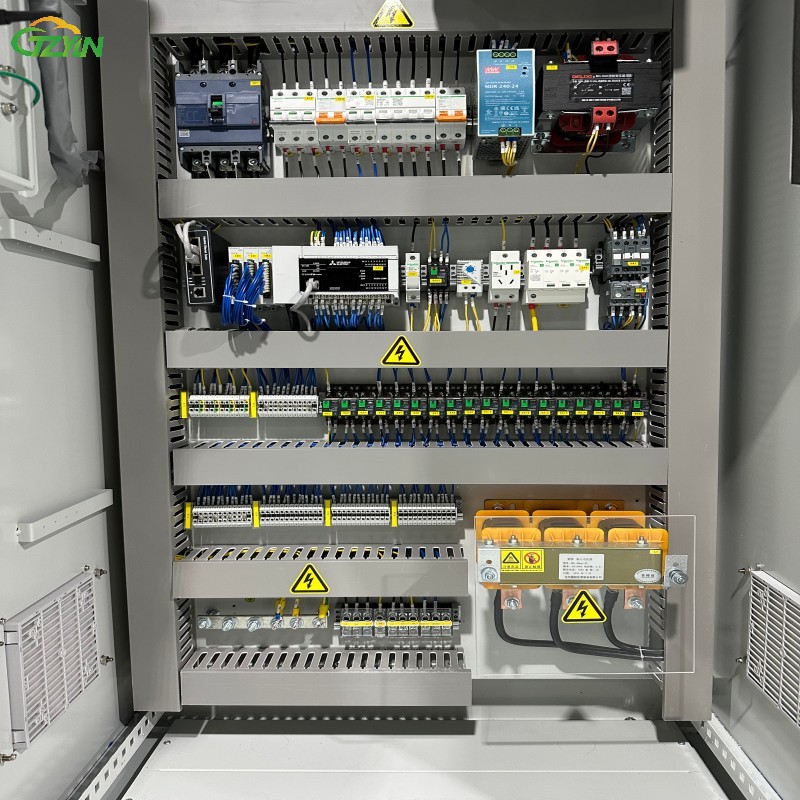

Wiring & Terminals: Standardized Design for Efficient Maintenance (Reflection of Turnkey Assembly Process)Industrial-grade terminal blocks and neat wiring technology are used internally, ensuring clear and traceable wiring. As a turnkey design and assembly manufacturer, our vfd control panel adopts a modular layout for wiring, eliminating the need for large-scale rewiring during later fault diagnosis or module upgrades, and significantly reducing maintenance time and costs.

II. Functional Advantages (Quantified Value, Directly Addressing Industrial Production Pain Points)

High Energy Efficiency: 30%+ Reduction in Electricity Costs, Fast ROI (Core Value for Water Pump Loads)As a professional supplier of water pump control cabinet and water transfer pump control panel, our vfd control panel enables "on-demand speed regulation" of motors through frequency conversion technology. Compared with traditional power frequency operation, it saves over 30% of electrical energy. Taking a 15kW water pump as an example, operating 8 hours a day, it saves more than 12,000 kWh of electricity annually, and the electricity cost can cover the equipment investment within one year.
Precise Control: Stepless Speed Regulation, Leap in Process Precision (Advantage for Multi-Scenario Control)It supports stepless speed regulation of motors from 0 to 500Hz, meeting the precise process requirements of "constant-speed synchronization" for production line conveyors and "variable-speed processing" for precision machine tools. It can also function as a control pump panel box to achieve constant-pressure control of water pumps, increasing product yield by 15%+.
Intelligent Protection: Extended Equipment Lifespan, Reduced O&M Costs (Reliability Guarantee for Turnkey Equipment)It is equipped with multiple intelligent protection functions, including overvoltage, undervoltage, overheating, overload, and phase-failure protection. When the equipment malfunctions, it automatically shuts down and triggers an alarm. As a turnkey power distribution equipment manufacturer, the vfd cabinet is designed with protection logic that fully accounts for the complexity of industrial scenarios, effectively extending the service life of motors and frequency converters by 50% and significantly reducing equipment maintenance and replacement costs.
Automation Integration: Unattended Operation, Doubled Efficiency (Turnkey System Integration Capability)Combined with Mitsubishi PLC and touchscreen, it enables 24/7 unattended automatic control, automatically completing equipment startup/shutdown, speed regulation, and fault self-diagnosis. As a turnkey design and assembly manufacturer, our vfd control panel can be customized with automated logic based on your production line requirements, reducing manual operation intensity by 70% and significantly improving production efficiency.

III. Technical Specifications

Specification Category	Detailed Specifications
Power Range	0.75–160KW
Power Supply Voltage	3-phase 380–480V (±15% fluctuation)
Frequency Range	Input: 48–63Hz; Output: 0–500Hz
Power Factor	0.98
Overload Capacity	1.1×In (1 minute allowed every 10 minutes)
Control Precision	Speed control (open-loop): 20% of motor rated slip; Torque control (open-loop): ±5% of rated torque
Protection Class	IP21, IP54 (optional)
Communication Protocol	Standard: Modbus; Optional: PROFIBUS DP, DeviceNet, Ethernet, etc.
Operating Temperature	0–50℃ (derating required at 40–50℃)
Altitude	0–1000m (derating required above 1000m)

IV. Application Scenarios (Multi-Industry Adaptation, Highlighting Keywords for Water Pump Control)

Water Treatment/Water Pump Control Scenarios: As a professional manufacturer of water pump control cabinet/water transfer pump control panel, our equipment is used for frequency conversion speed regulation of water pumps. It automatically adjusts speed based on pool water level and outlet pressure to achieve constant-pressure water supply. Whether you need a control box for water pump or a water pump control board, our turnkey design can accurately meet water pump control needs in scenarios such as municipal water supply and sewage treatment plants, avoiding water waste and frequent startup/shutdown wear of water pumps.
HVAC Industry: It controls the frequency conversion operation of fans and air conditioning units, automatically adjusting air volume based on indoor temperature and humidity. While saving over 30% energy, it improves environmental comfort, making it ideal for vfd control panel applications in HVAC systems of commercial buildings and factory workshops.
Manufacturing Production Lines: It is compatible with equipment such as conveyors, machine tools, and packaging machines, enabling precise synchronization and linkage control of production line speed. It meets the process requirements for precision manufacturing of auto parts and electronic components, and fully demonstrates the value of vfd cabinet in discrete manufacturing scenarios.
Warehousing & Logistics Industry: It is used for motor control of stackers, conveyors, and sorting equipment, enabling smooth acceleration/deceleration and precise positioning of equipment. It improves the efficiency of warehousing and logistics operations and reduces cargo damage rates.

As a manufacturer specializing in turnkey design and assembled power distribution equipment, we not only provide high-performance vfd control panel/vfd cabinet but also offer customized solutions such as water pump control board and control pump panel box based on your production line conditions and load types (e.g., water pumps, fans). We deliver industrial-grade control equipment through one-stop service—from component selection to cabinet integration—to help your production lines achieve energy-saving and intelligent upgrades.
