Generator control cabinet

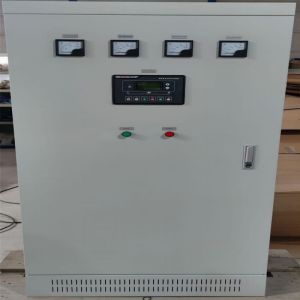

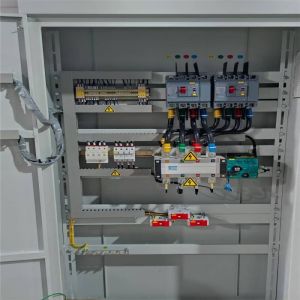

This project is a customized generator control cabinet, suitable for supplying power to the generator from the mains. The shell of the distribution cabinet is made of carbon steel spray paint material, with a color of 7032 and industrial gray. All products inside the cabinet are suitable for first tier Chinese brands. Low voltage MCCB and MCB, using Chinese Delixi brand, and ATS dual power conversion switch using Aiske brand.

The distribution cabinet realizes fully automated control. When a power outage is detected, the ATS will automatically switch to the generator for power supply. When the power is normally supplied, the generator will automatically stop and switch to the power supply.
